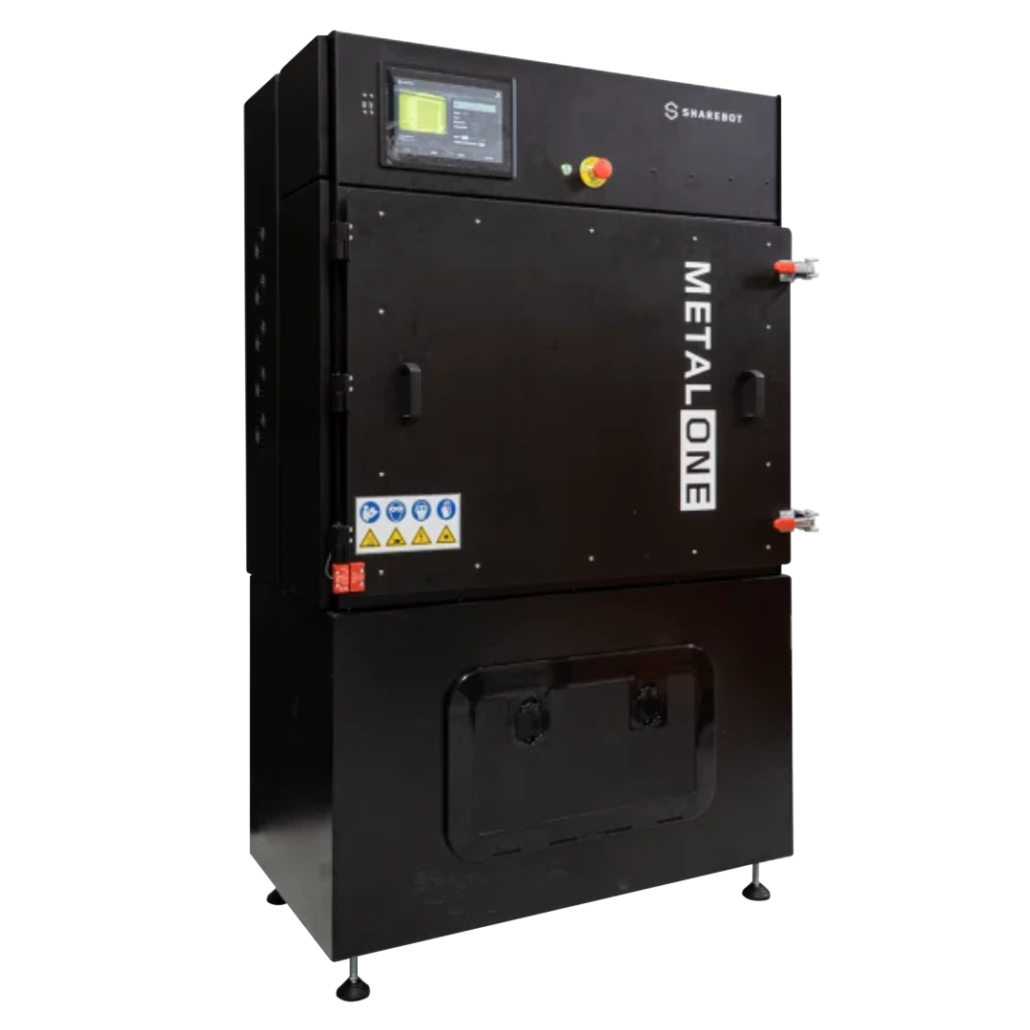

Sharebot metalONE

Direct Metal Laser Sintering (DMLS) metal 3D printer, an open system designed for research that lets you change spot size, laser speed and power and precisely control printing paths.

It allows you to freely perform multiple tests on various types of alloys.

DETAILS (MAIN FACTS)

1064nm fiber laser
Galvanometer with f-Theta lens
Open parameters
Laser power up to 1 kW

Designed for R&D

Start a job in 15 minutes (see video). Test and produce your own alloy (see video).

Open system for R&D: you can control any process parameters (see video) and use standard GCODE files (see why).

Laser power up to 1 kW

Personalize and control metalONE

From the LAN you can see printing progress and eventually stop a job.

You can access the log file of every job and the pictures taken before and after each layer.

In accord with our team, you can also ask to add sensors or new features.
We can help you to personalize the printer to meet your needs.

Your FIRST metal printer

Affordable and easy to use.
Fast and easy maintenance cleaning and changing powder in hours.

You can start with a limited budget to understand metal 3d printing process in order to be ready to meet your needs.

Test the printer

Do you have a project?

Send us your STL file: we will be happy to print it in order to understand the possibilities of our printer.

We usually build test pieces with 316L, other materials are available on request.

Printing volume65 x 65 x 100 mm (2.56 x 2.56 x 3.93 in)
Z resolution30 micron (0.0012 in)
Gas consumption0.25 l / min (8.45 floz / min)
LaserFiber – 1064um – 300 Watt
(also available 500 W or 1000 W)
Spot dimension45 micron (0.0018 in)
GasNitrogen – Argon
Minimum powder load0.8 kg (1.76 lb)
HD CameraIntegrated
ConnectivityLAN
Dimensions1000 x 580 x 1450 mm (39.3 x 22.8 x 57.0 in)
Weight270 kg (600 lb)

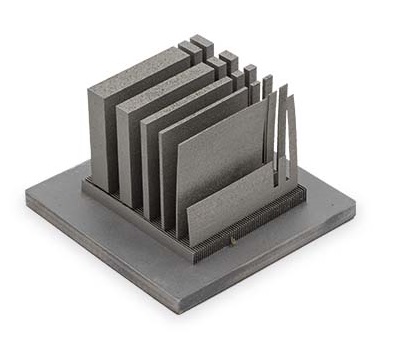

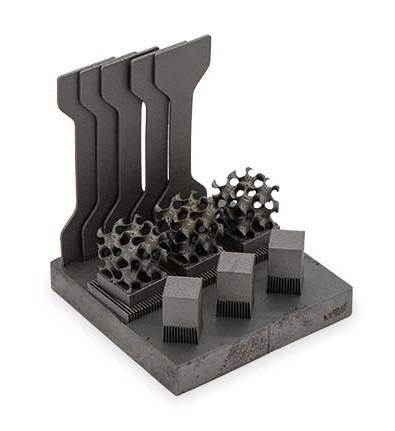

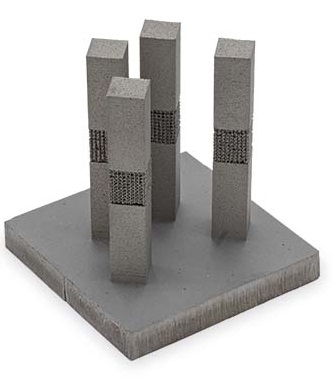

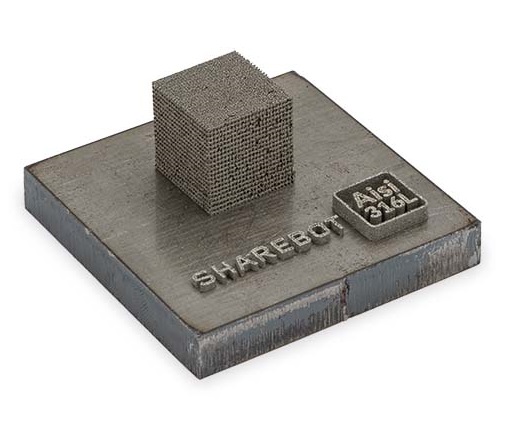

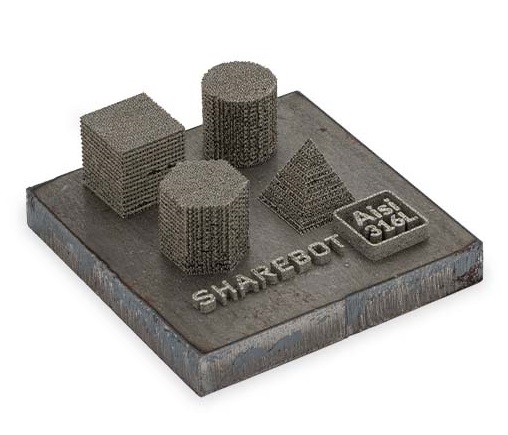

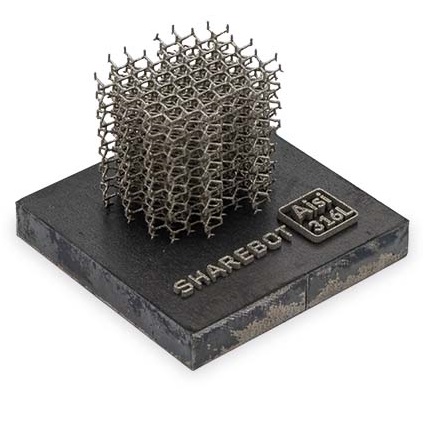

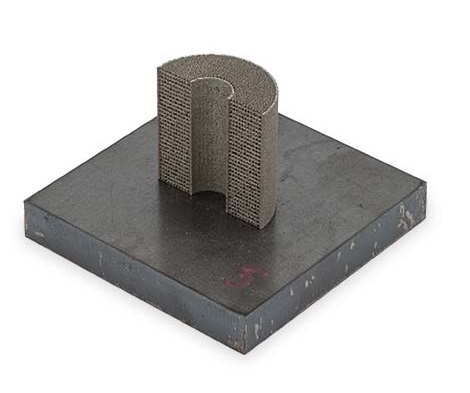

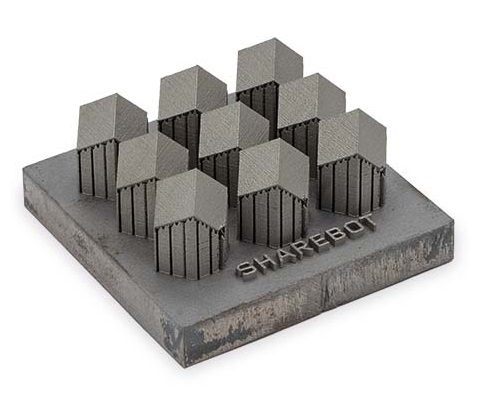

See some of our test objects

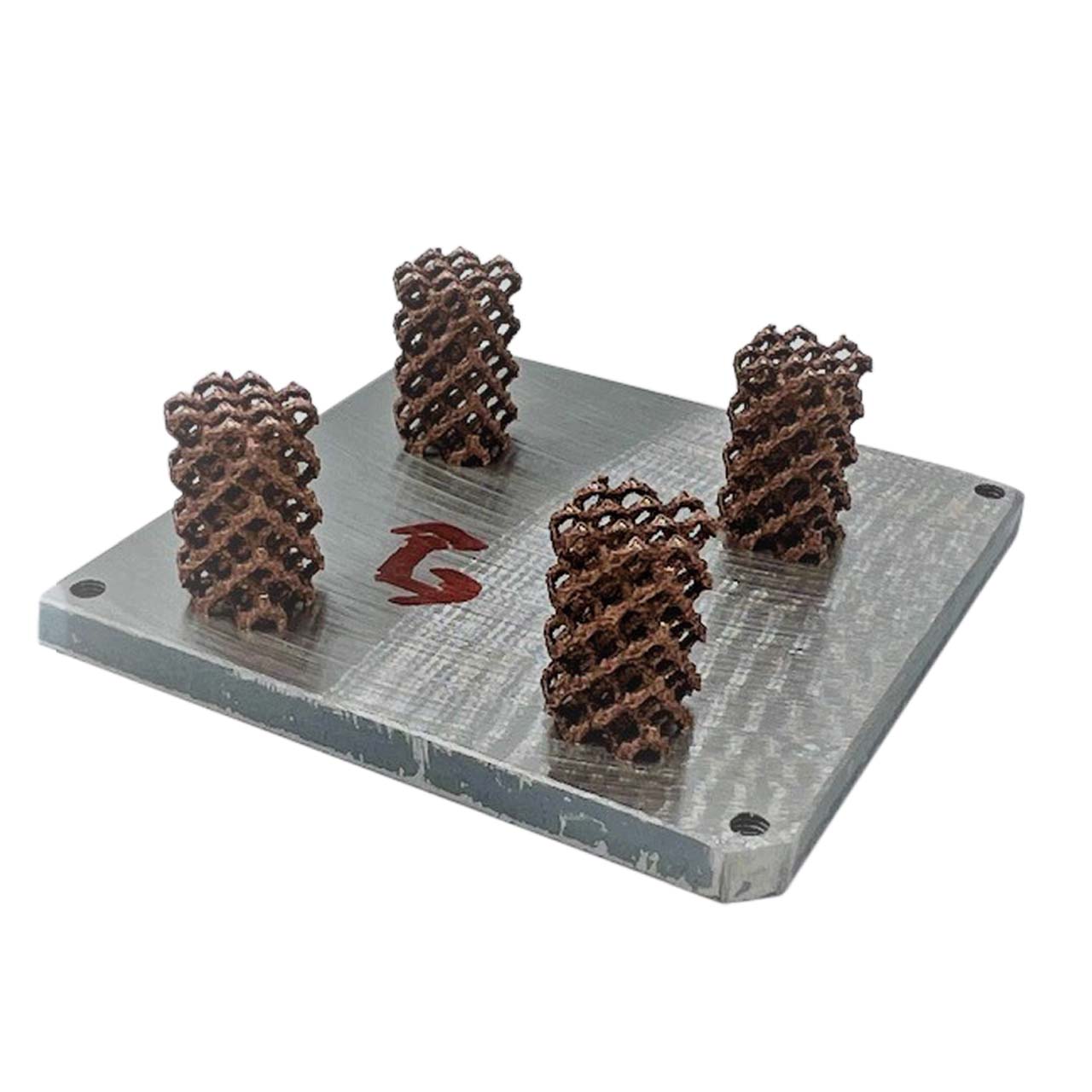

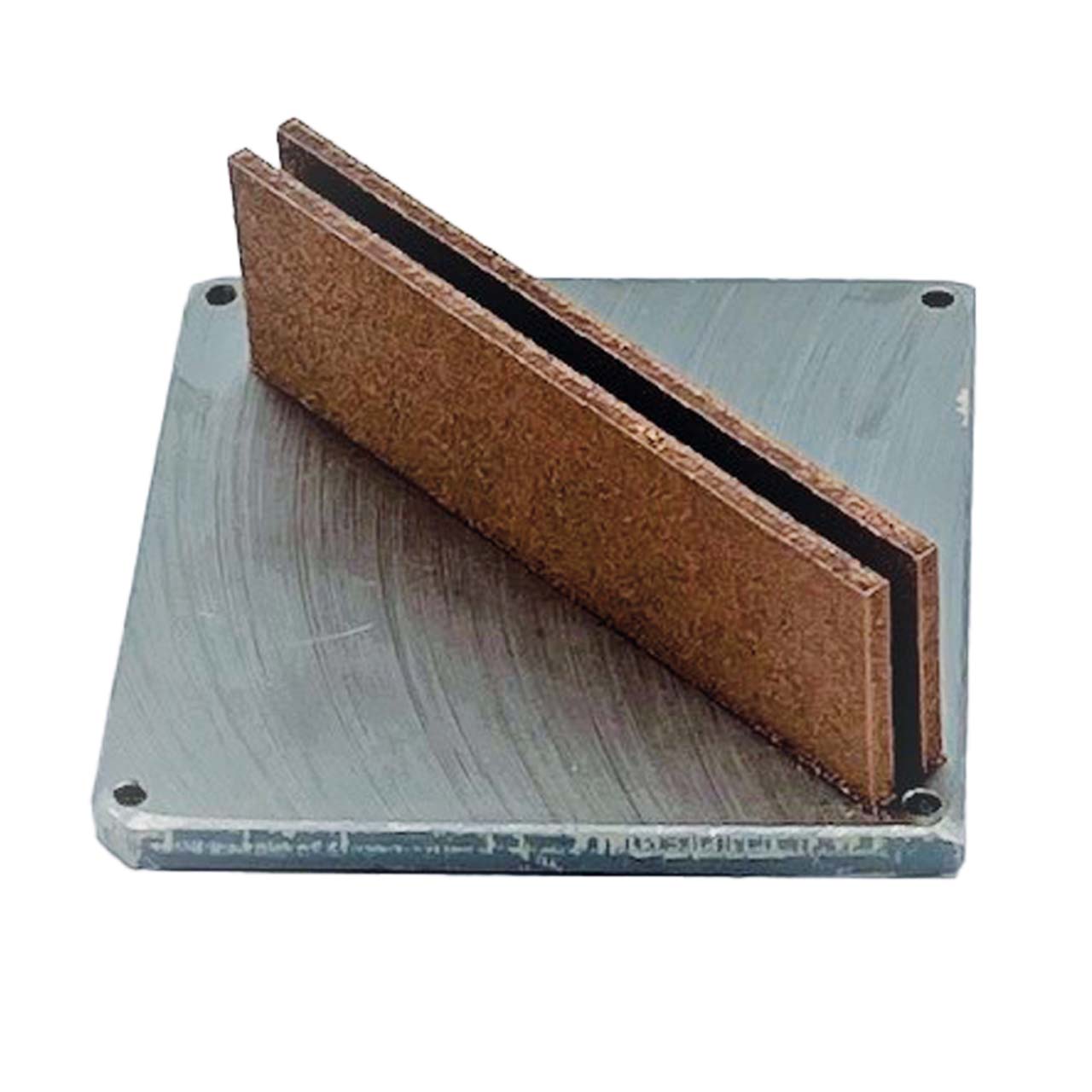

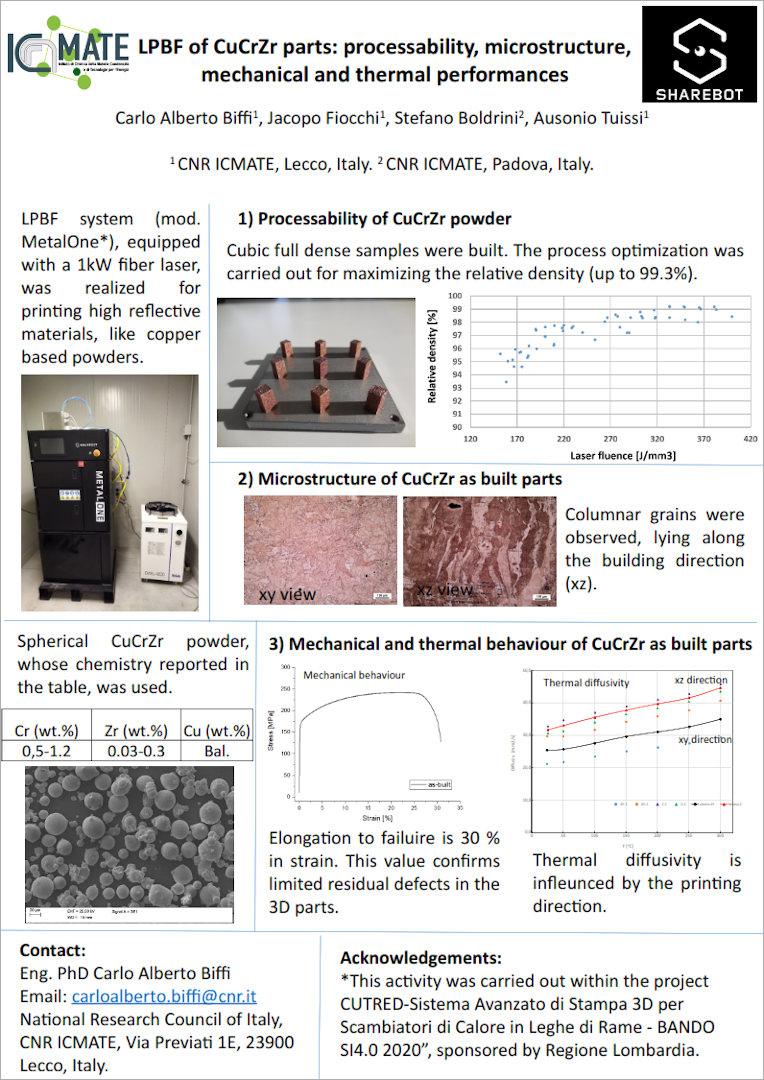

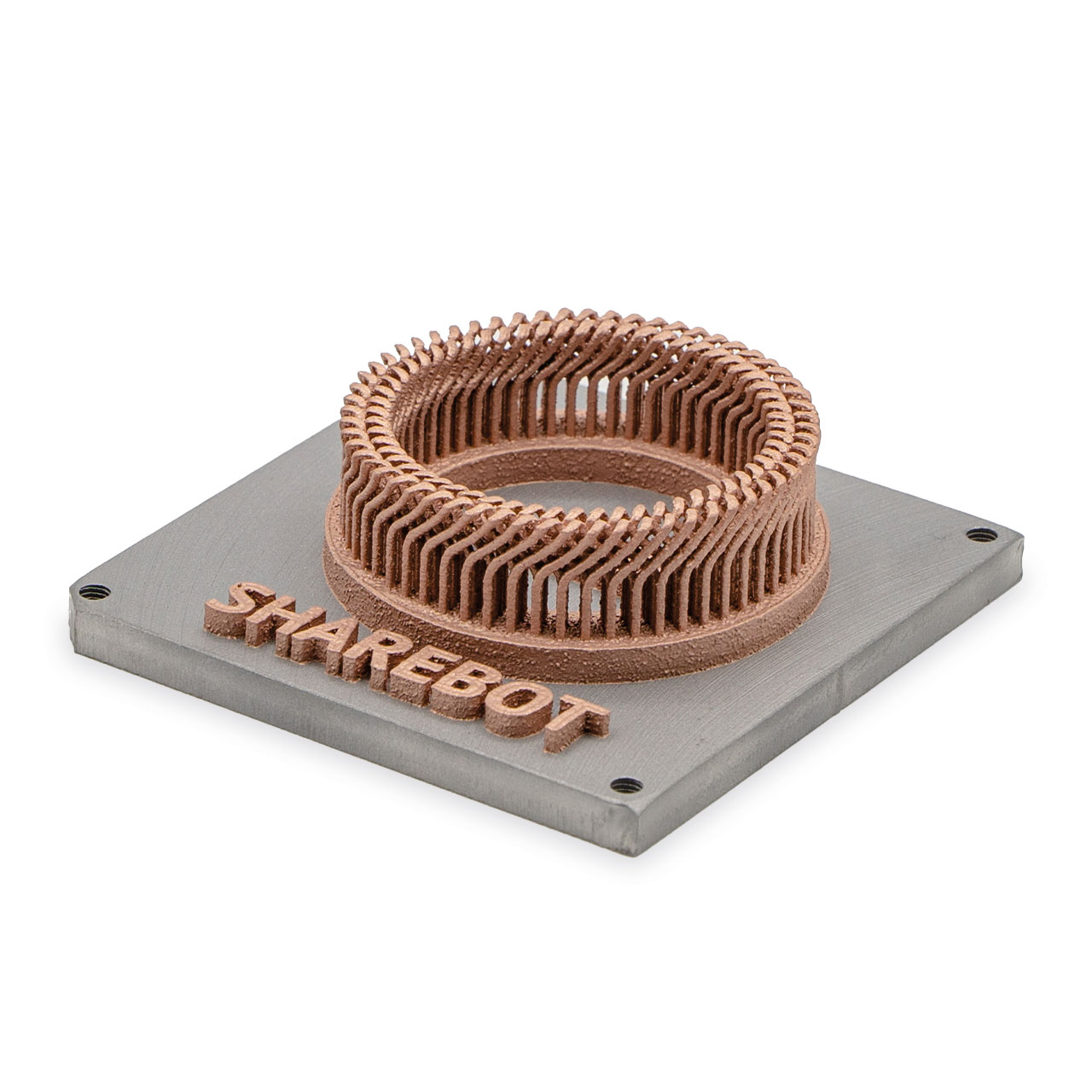

First Copper Prints

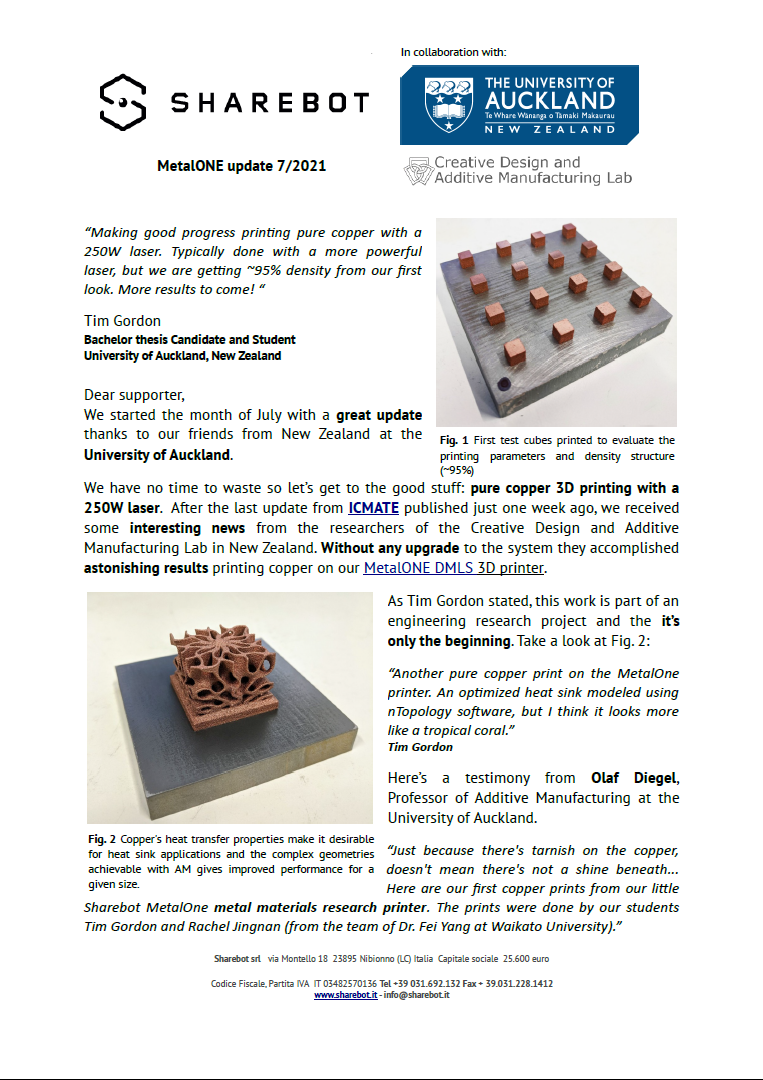

Copper Testing

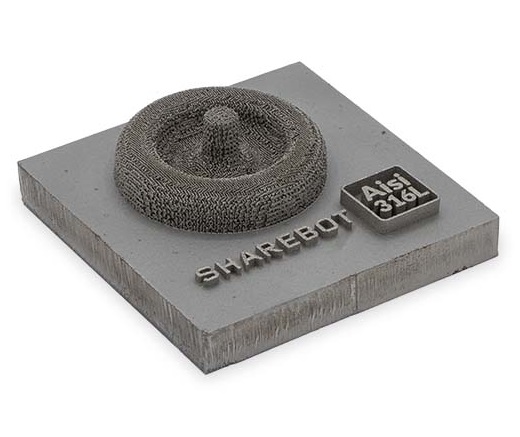

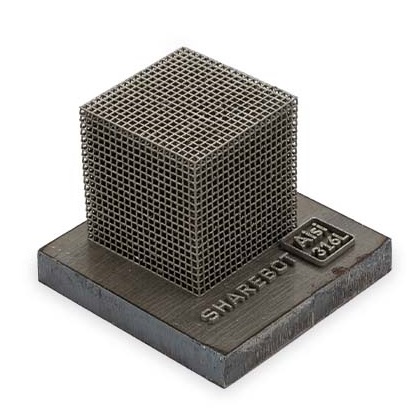

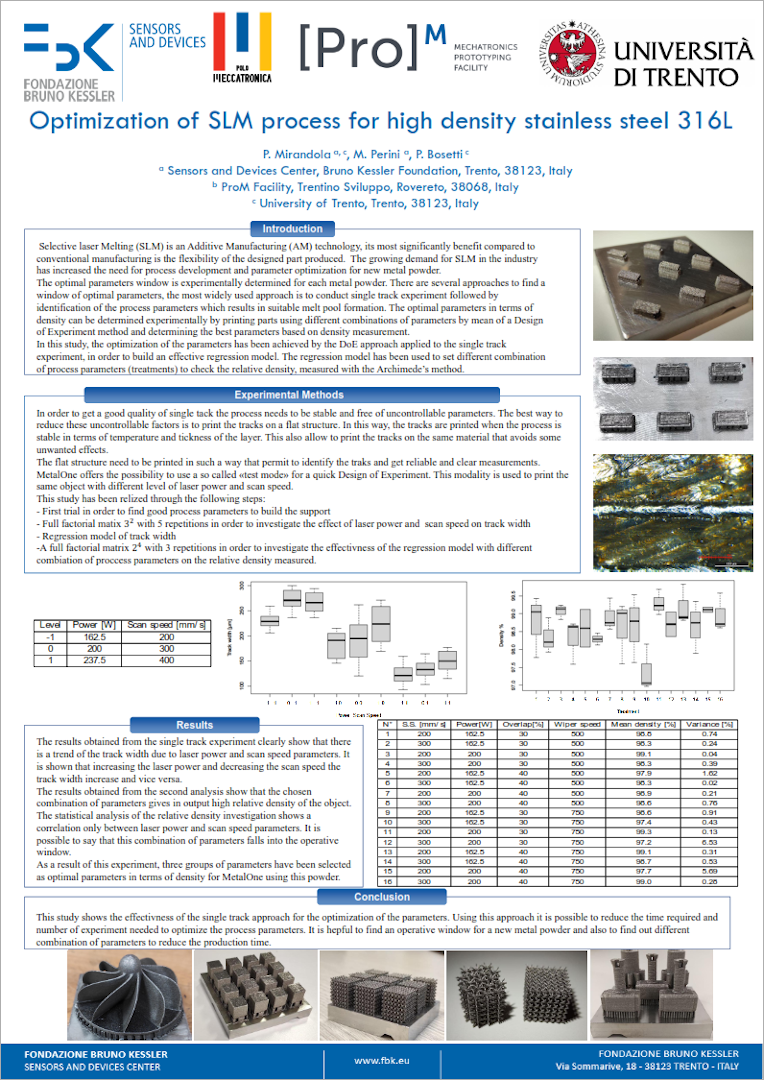

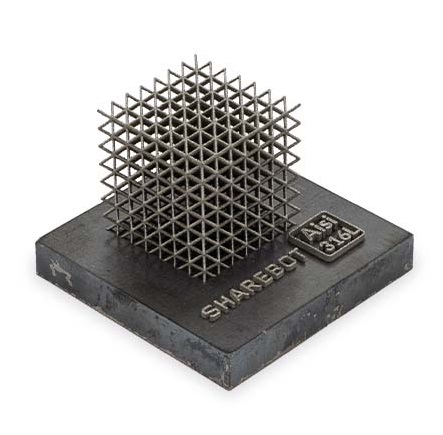

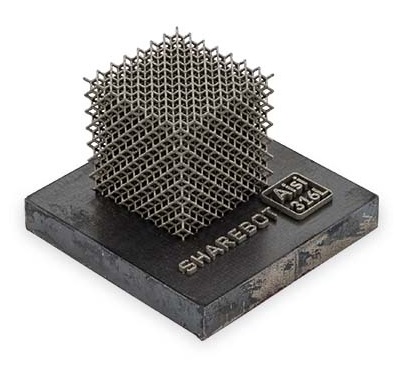

316L Evaluation

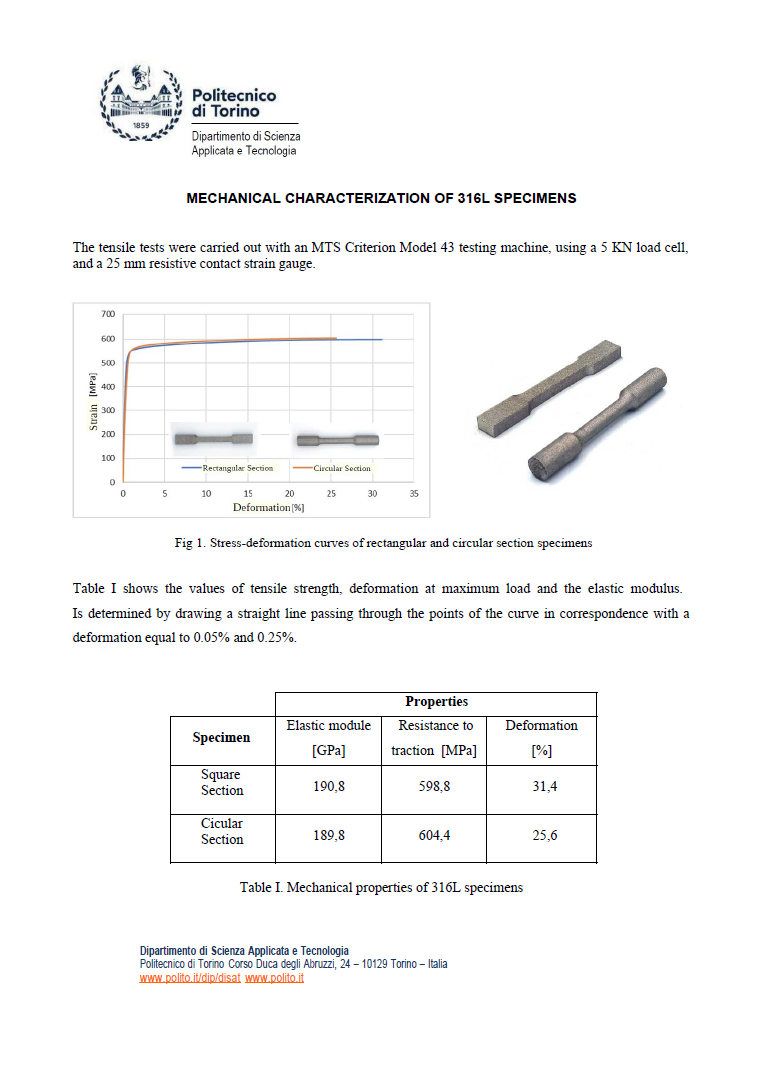

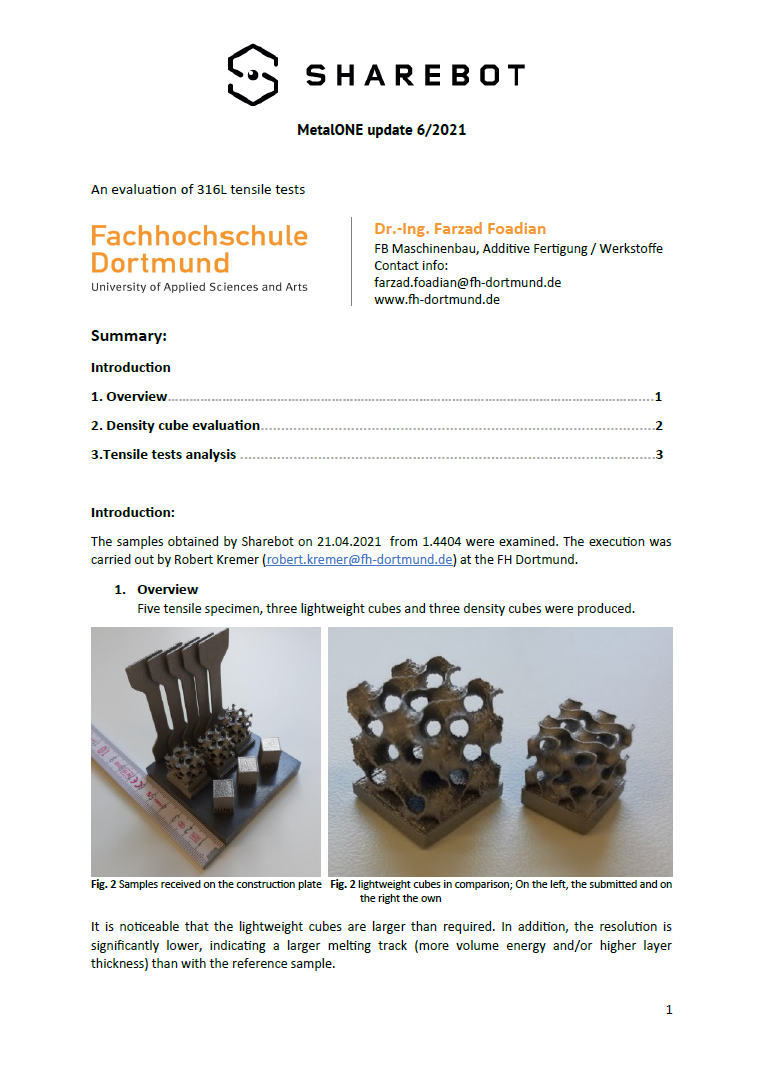

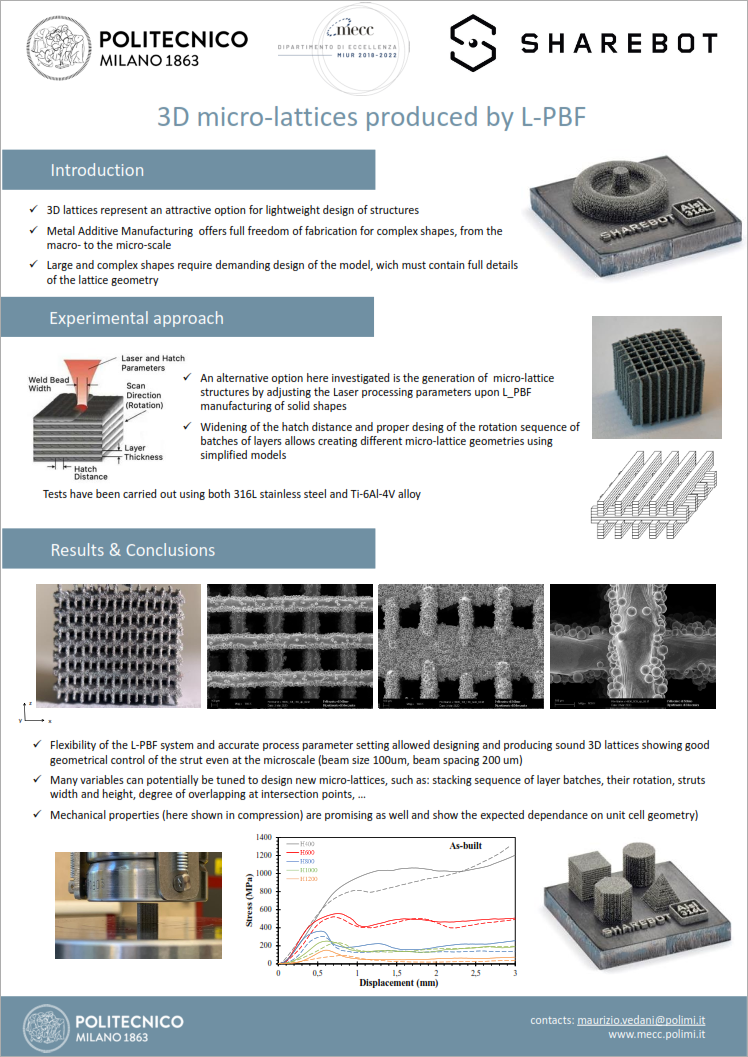

316L Characterization
