Sharebot VIPER

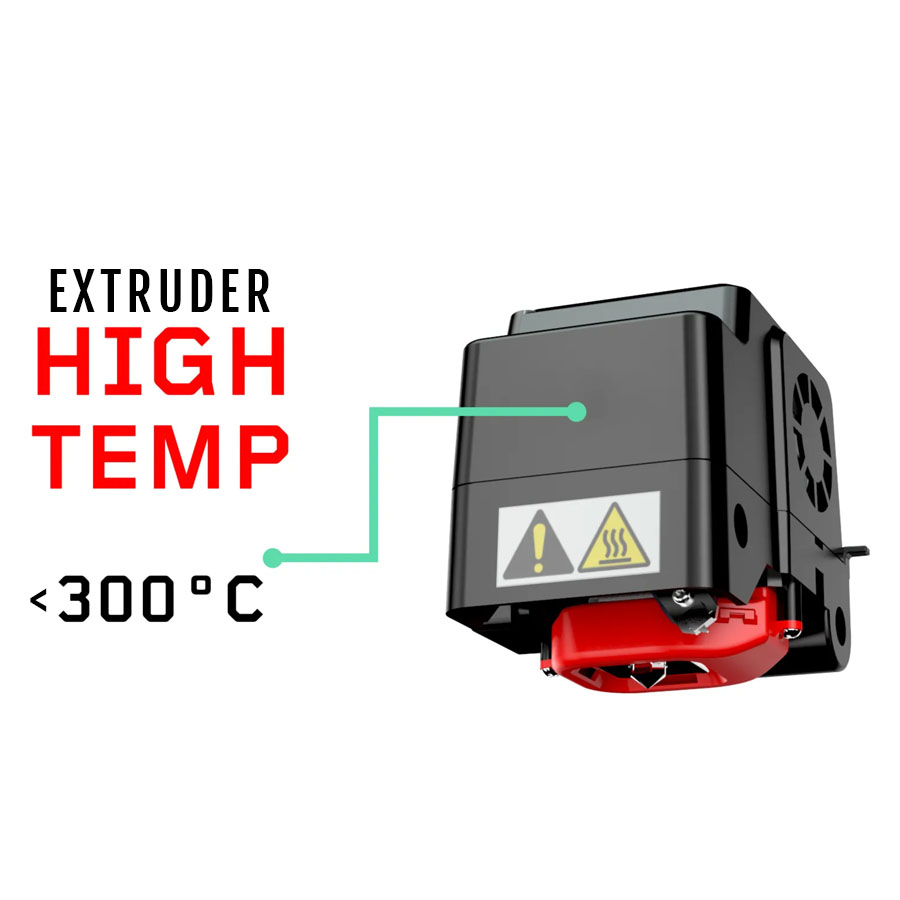

Sharebot VIPER is equipped with an extruder that can reach temperatures up to 300 °C.
Finely pre-calibrated, it allows to obtain prints of exceptional quality and excellent dimensional accuracy.
Even an hard to print material such as ABS will not be subject to warping with consequent detachment from the build plate of Sharebot VIPER.
Thanks to the possibility of purchasing a nozzle upgrade kit, you can experiment with different extrusion diameters, ranging from 0.3 mm to 0.8 mm.

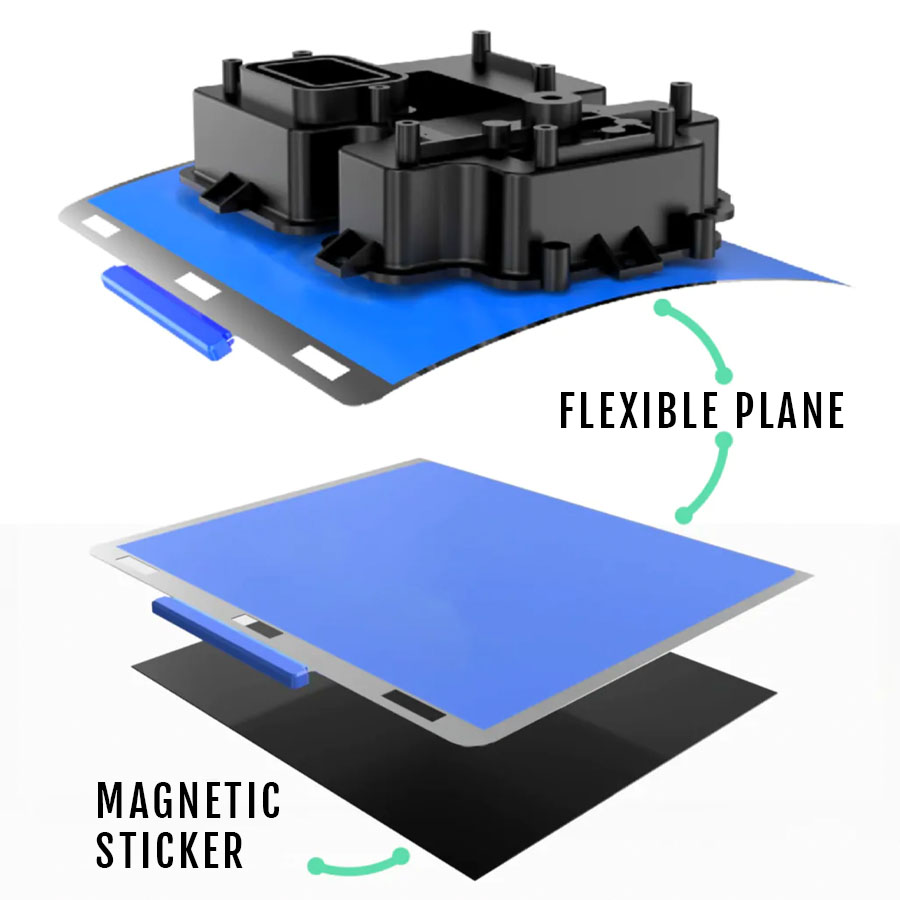

The Flexible Magnetic Plate KIT available for Sharebot VIPER allows easy removal of printed models.
In fact, it will be possible to completely extract the printing plate and, by performing a slight bending, remove the printed pieces without the need to use any additional tools.
The installed Build Tape also has a special texture that guarantees the attachment of the models to the plate without the use of adhesives.

Thanks to the Ethernet or Wifi connection it can be integrated into your production system and be part of your insdustry 4.0 smart factory.

TECHNICAL SPECIFICATIONS

Build Volume: 280 x 250 x 300 mm
Number of extruders: 1
Build chamber: closed

SMALL SIZE PROFESSIONAL 3D PRINTER

Suitable for building objects for small productions even with technical materials; accurate and affordable, with all the requirements of Industry 4.0.

Easy to maintain thanks to an essential and not complex mechanics.

INSTALLATION, ASSISTANCE, TRAINING

Technical support and warranty are always handled by our technicians.

A special training session can be carried out by our engineers who can participate in solving specific problems.

EPA filters for workplace usage

EPA filters minimize micro- and nano-particle emissions for a healthier work environment.

Magnetic Plate Kit

The removable magnetic plate ensures the easy detachment of built objects from the printing surface.

Build volume280 x 250 x 300 mm
Num. of extruders1
Nozzle0,4
Extruder temp. (max)300 °C
Plate temp. (max)120 °C
External dimensions55 x 49 x 57 cm
Weight30 kg
Printing chamberclosed
Air filtersEPA
Touch screen4″

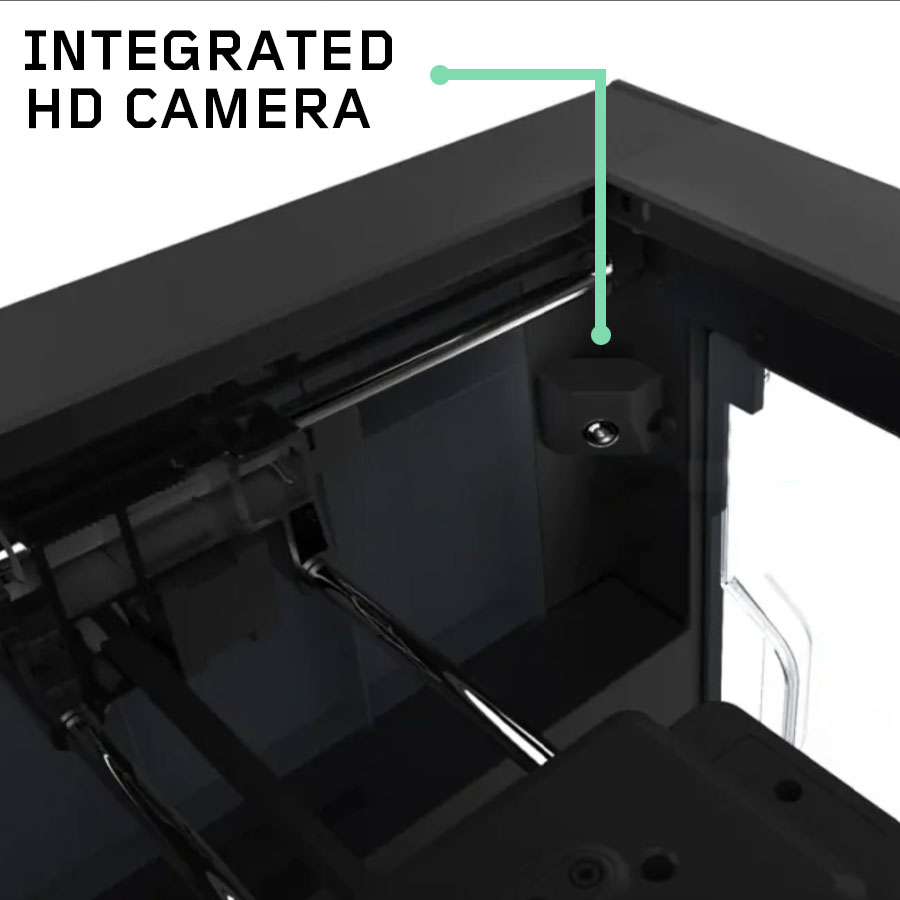

Internal camerayes
ConnectivityUSB, LAN, WiFi
Industry 4.0yes
Recommended softwaresimplify3d / flashprint

All FFF (Fused Filament Fabrication) printers are equipped with filament sensor and automatic plate calibration.

PLAPETABSoluteTPUrePP
CHEMICAL COMPOSITIONpolylactic acidpolyethylene terephthalateacrylonitrile butadiene styrenethermoplastic polyurethanepolypropylene
SPOOL FORMAT (gr)750750750500450
