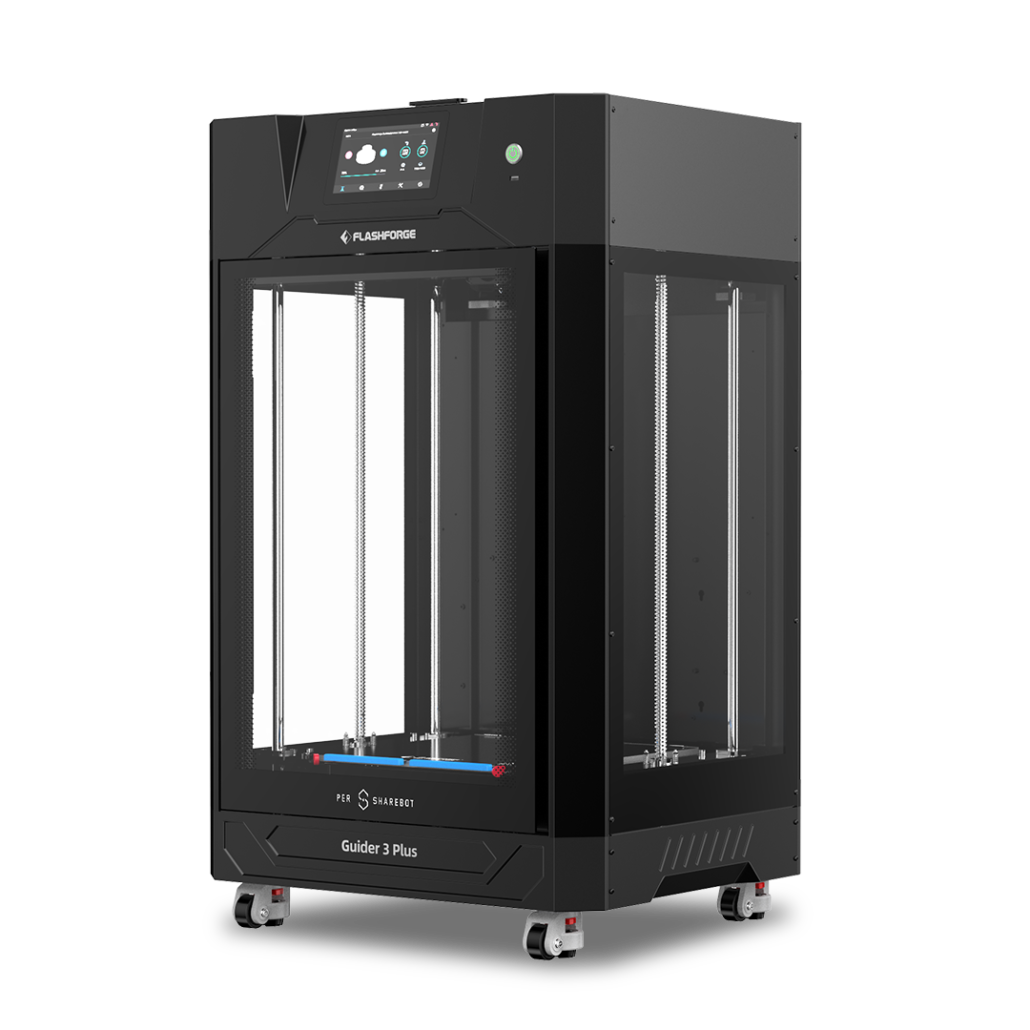

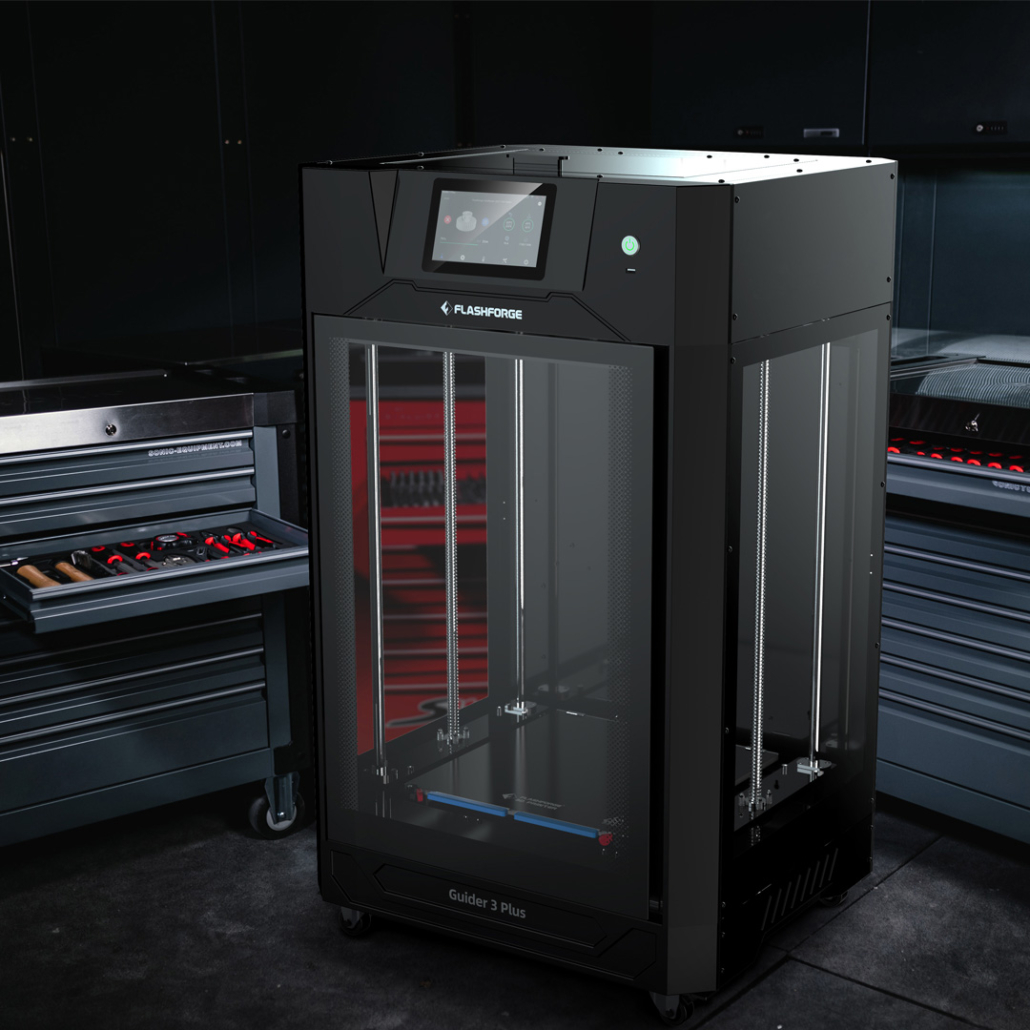

Sharebot Plus

Plus is a professional grade 3D printer, featuring high speed printing up to 250 mm/s, great print quality, quiet and smooth operation.

Ideal for small businesses, studios, universities, and laboratories, Guider 3 Plus assists engineers and designers in rapid prototyping.

Equipped with print recovery after power failure, internal dry boxes for filament spools, and HEPA air filters, it is the best solution for any kind of activity.

Thanks to the Ethernet or Wifi connection it can be integrated into your production system and be part of your insdustry 4.0 smart factory.

In Sharebot’s showroom the printer is always available to carry out quality tests and print tests.

TECHNICAL CHARACTERISTICS

Dimensions: 635.5 x 590.5 x 1060 mm
Build volumea: 350 x 350 x 600 mm

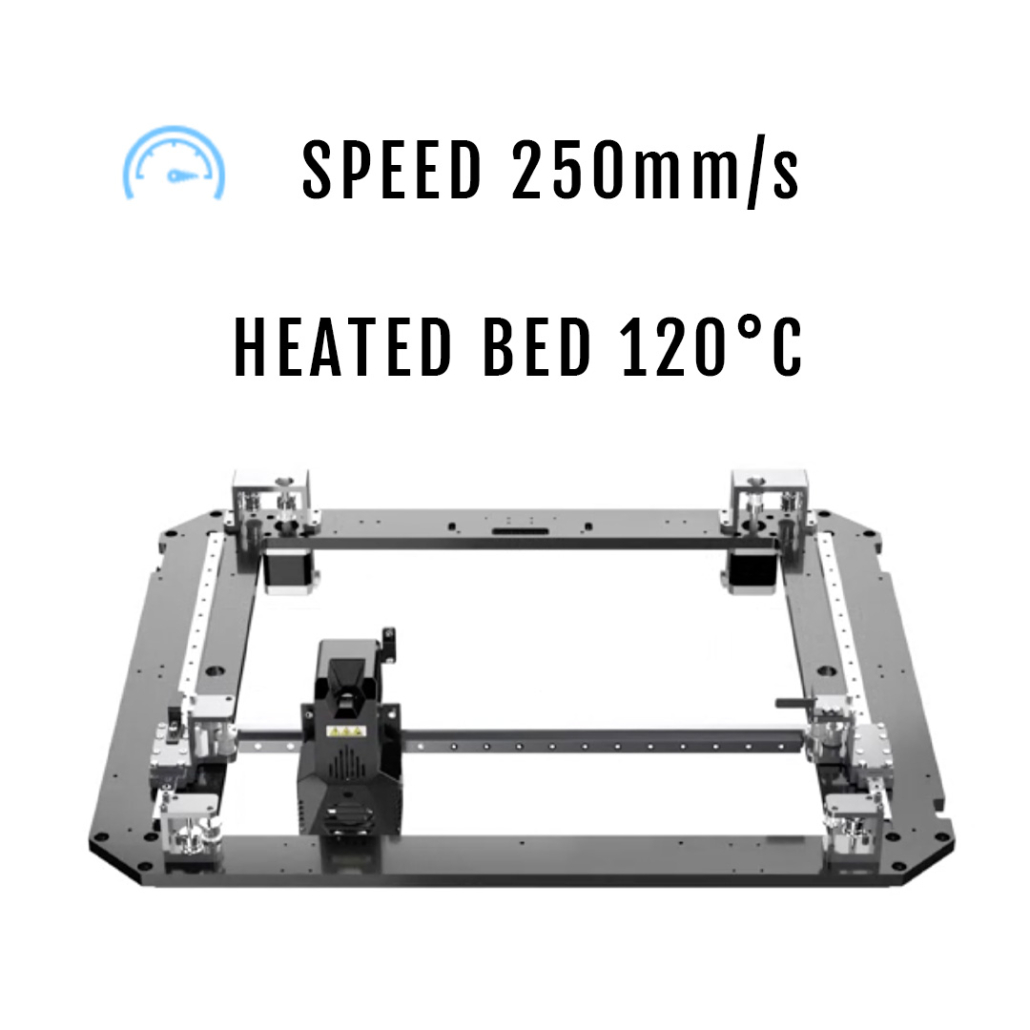

Core XY motion structure
Layer height from 0.05 to 0.4 mm
Nozzle: 0.4 mm (0.6 / 0.8 mm)
Extruders up to 320 °C
Heated plate up to 120 °C
Print speed from 10 to 250 mm/s
Connectivity: USB, WiFi, Ethernet

REQUEST OFFER BROCHURE REQUEST MANUALS REQUEST ASSISTANCE
Main featuresTechnical specificationsCompatible materials
PreviousNext

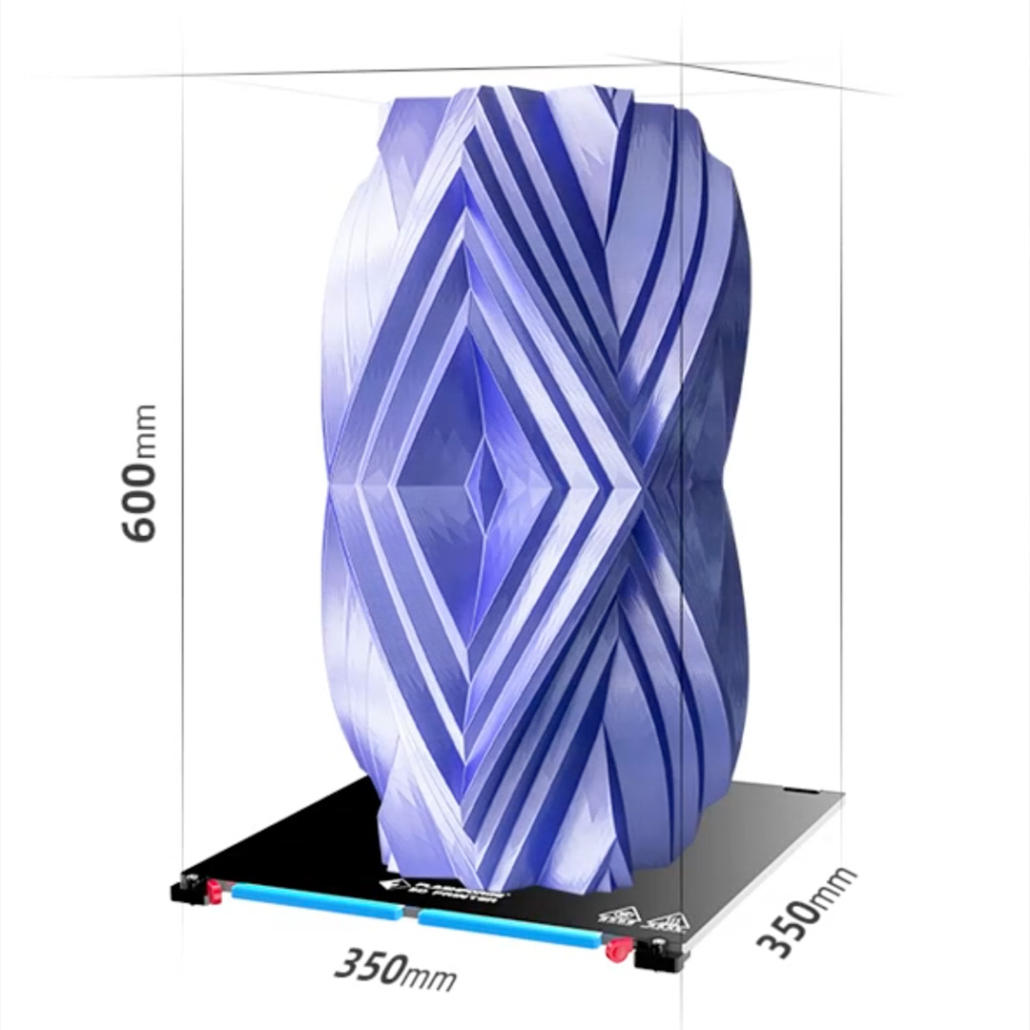

BUILD VOLUME OF 350x350x600 MM

The large print volume allows constructions up to 600 mm in height.

Thanks to the printing speed of up to 250 mm/s, however, it is able to quickly complete the construction processes with great precision.

Technical materials for professional use

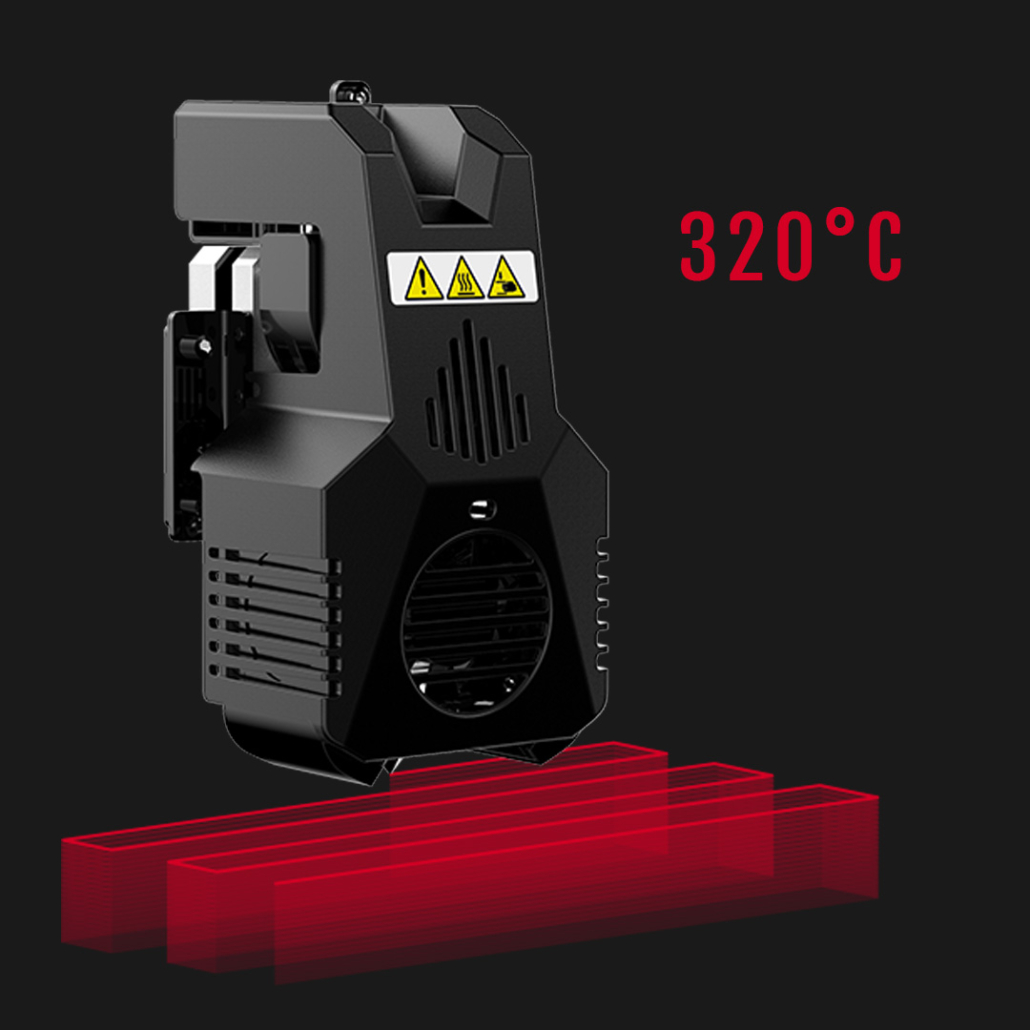

The extruder heads that reach up to 320°C and the special nozzles (0.4, 0.6 and 0.8 mm) give the possibility to use a wide range of filaments, in particular those with the most advanced mechanical characteristics like PET-Carbon, Nylon-Carbon, Nylon-Glass, ABS, PC e PETG.

EPA filters minimize micro- and nano-particle emissions for a healthier work environment.

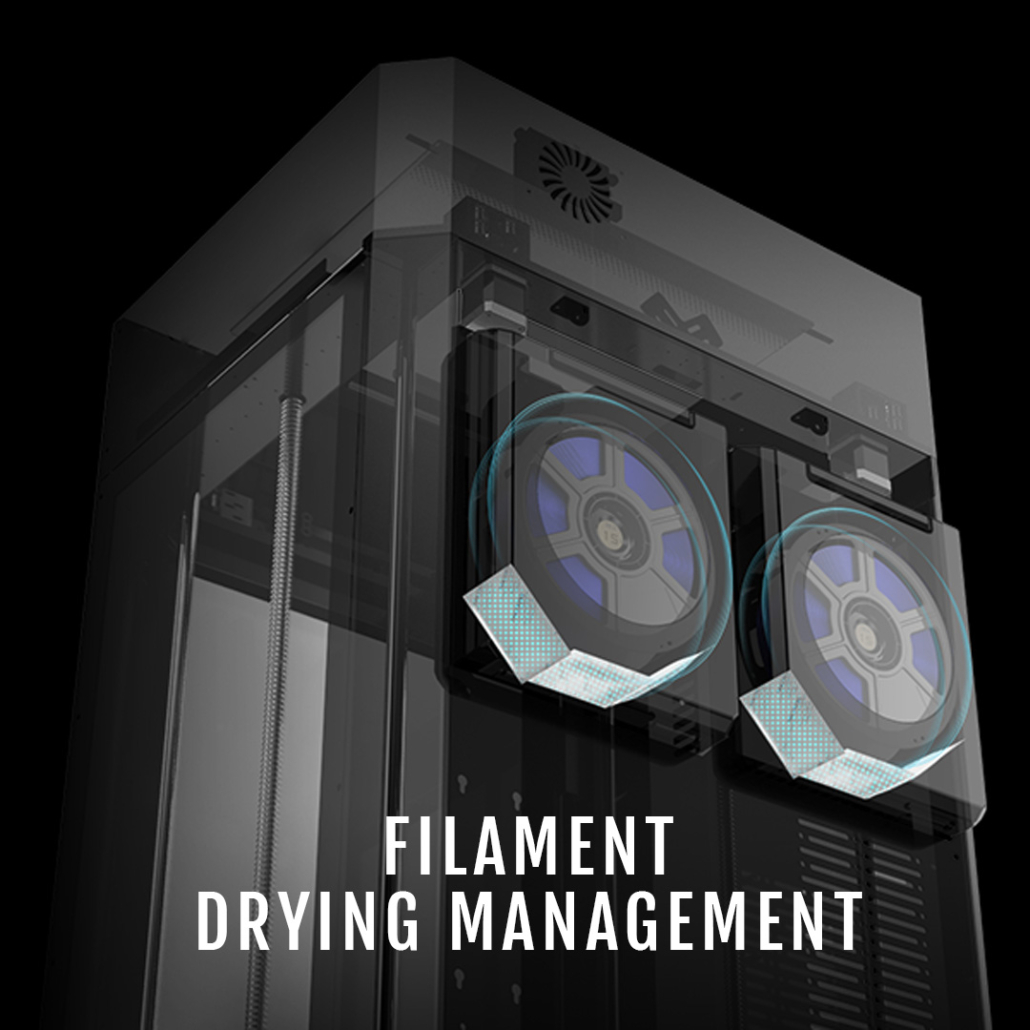

Filament chambers with dessiccant

The two sealed chambers, containing gel dessiccant, allow the filaments (a second spool of 1 kg, in addition to the one in use) to be kept at a controlled humidity rate.

The chambers are equipped with hygrometers so that the user can monitor the environmental conditions in real time.

INSTALLATION, ASSISTANCE, TRAINING

Technical support and warranty are always handled by our technicians.

A special training session can be carried out by our engineers who can participate in solving specific problems.

Build volume350 x 350 x 600 mm
Num. of extruders1
Nozzle0,4 – 0,6 – 0,8
Extruder temp. (max)320 °C
Plate temp. (max)120 °C
External dimensions64 x 59 x 106 cm
Weight70 kg
Printing chamberclosed
Air filtersHEPA
Touch screen7″
Internal camerayes
ConnectivityUSB, LAN, WiFi
Industry 4.0yes
Recommended softwareflashprint

Tutte le stampanti FFF (Fused Filament Fabrication) sono dotate di sensore filamento e procedura automatizzata di calibrazione del piano di stampa.

PLAPETABSoluteTPUreNYLON-GLASSNYLON-CARBONPET-HTCF1-RACEPP
CHEMICAL COMPOSITIONpolylactic acidpolyethylene terephthalateacrylonitrile butadiene styrenethermoplastic polyurethanereinforced polyamide with glass fibersreinforced polyamide with carbon fiberspolyethylene terephthalate + 10% carbonpolyphenylene sulfide + 10% carbonpolypropylene
SPOOL FORMAT (gr)750750750500500500500500450
