C4 HS NEW

Thanks to the collaboration with Sharebot which guarantees training, installation, assistance, and warranty, C4 HS is now available for the European market.

Produced in the FlashForge factories, C4 HS is a professional 3D printer compliant with Industry 4.0.

SPECIFICATIONS

Build volume: 400 x 350 x 500 mm

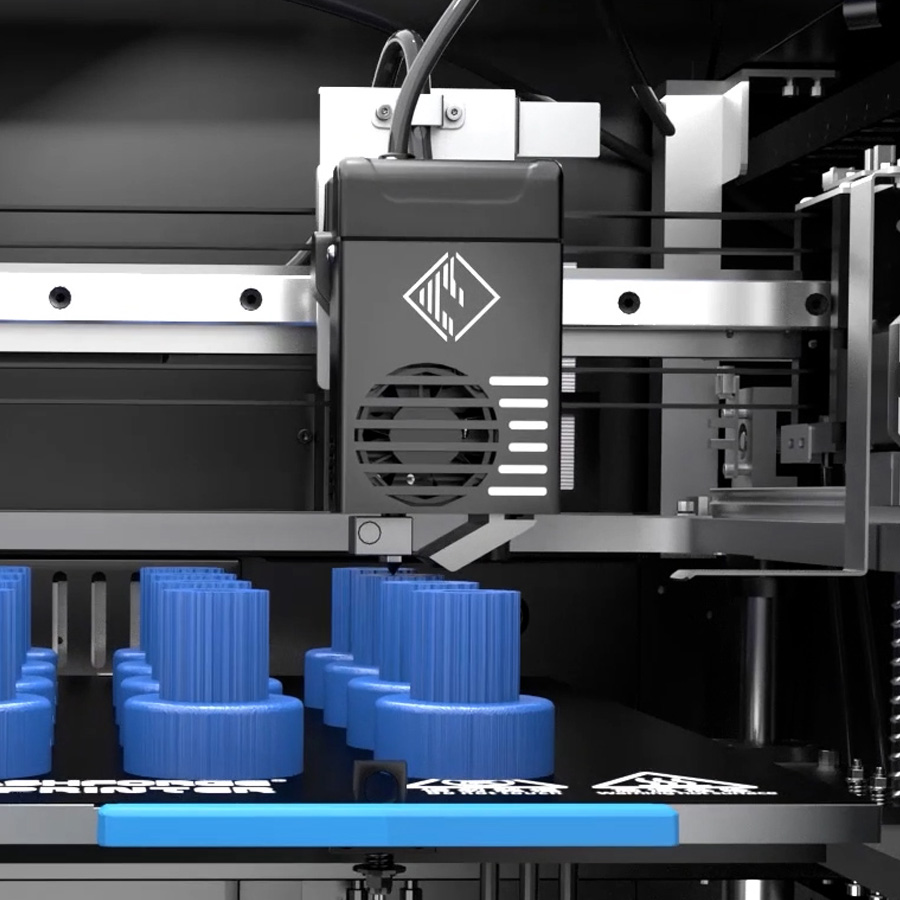

Dual independent extruders
Heated chamber up to 65 °C

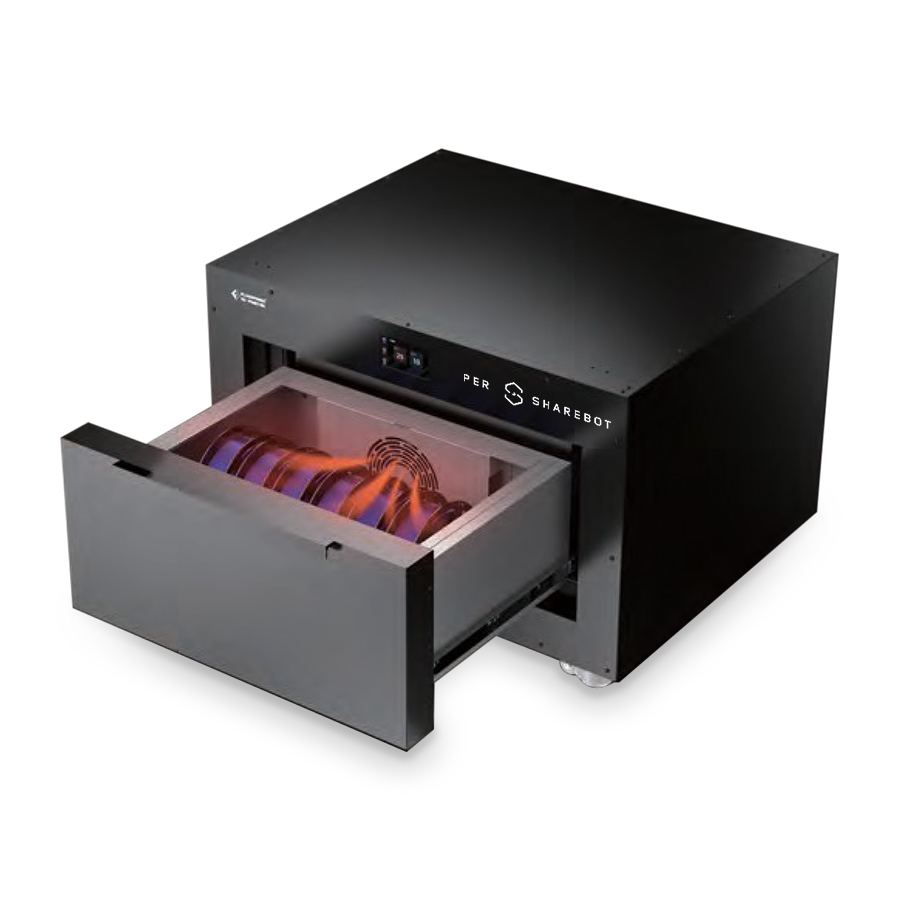

Optional DRY-BOX

Dimensions: 800 x 670 x 600 mm
Weight: 120 kg
Max Drying Temperature: 120 °C
Humidity Control Range: 10% — 20%
Spool number: 6 of 1kg or 2 of 2.5 kg
Funzioni: drying – storage – annealing
Display: 4.3″ touch
Smart drying: 16 filament presets
Filter life: 2 years
Automatic silica filter regeneration

Flashprint Software included

REQUEST OFFER BROCHURE CREATOR HS BROCHURE DRY-BOX REQUEST ASSISTANCE

Main features Technical specifications Compatible materials

PECULIARITIES

Allows you to print two identical duplicated objects.

Can recover interrupted prints and perform automatic shutdown at the end of construction.

CLOSED CHAMBER

The completely closed chamber, heated up to 60 °C, guarantees full safety and noise reduction.

EPA filters minimize micro- and nano-particle emissions for a healthier work environment.

FLEXIBLE, MAGNETIC PRINTING PLATE

The removable, flexible and magnetically fixed printing plate makes it easier the models detachment and can reach a temperature of 120 °C.

Buildtak is used as printing surface for better models adhesion; it is, however, recommended to use MagicGoo in the specific version for the materials used.

INSTALLATION, ASSISTANCE, TRAINING

Technical support and warranty are always handled by our technicians.

A special training session can be carried out by our engineers who can participate in solving specific problems.

Build volume	400 x 350 x 500 mm
Num. of extruders	2
Nozzle	0,4 – 0,6
Extruder temp. (max)	360 °C
Plate temp. (max)	120 °C
External dimensions	85 x 68 x 105 cm
Weight	130 kg

Printing chamber	up to 65 °C
Air filters	EPA

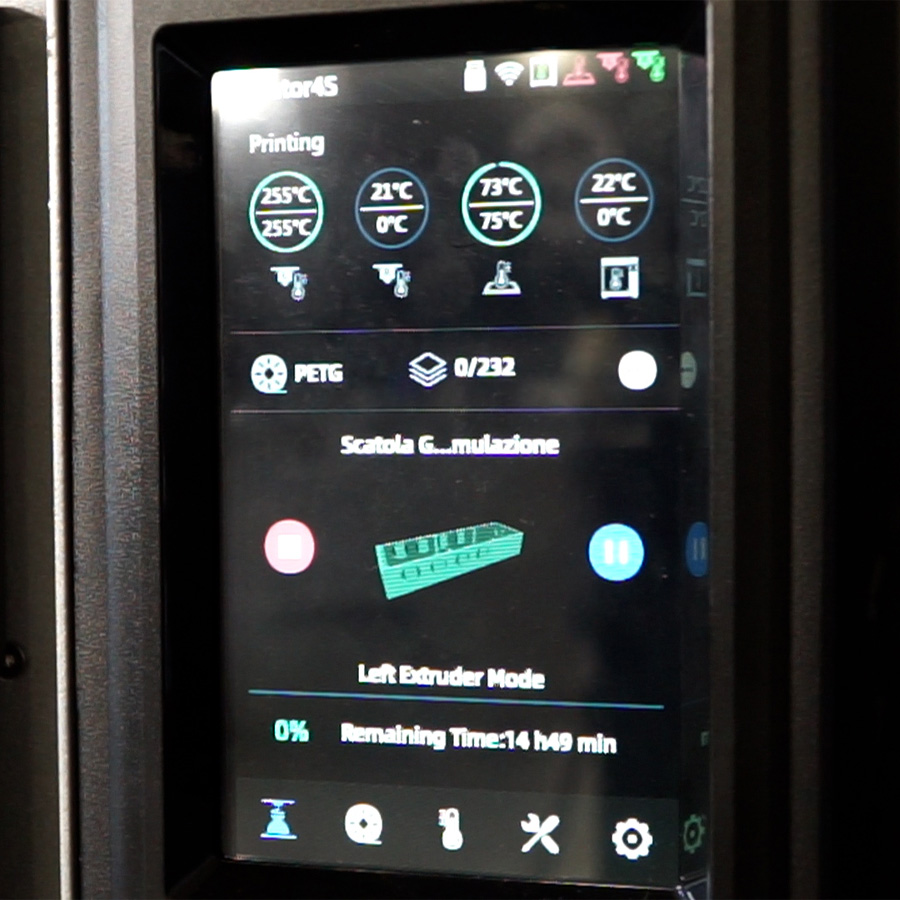

Touch screen	7″
Internal camera	yes
Connectivity	USB, LAN, WiFi
Industry 4.0	yes
Recommended software	simplify3d / flashprint

All FFF (Fused Filament Fabrication) printers are equipped with filament sensor and automatic plate calibration.

	PLA	PET	ABSolute	NYLON-CARBON	PET-HTC
CHEMICAL COMPOSITION	polylactic acid	polyethylene terephthalate	acrylonitrile butadiene styrene	reinforced polyamide with glass fibers	polyethylene terephthalate + 10% carbon
SPOOL FORMAT (gr)	750	750	750	500	500
