Sharebot 43 Pro

The professional 3D printer with indipendent dual extruders, which can realize functional mechanical prtototypes with high resolution (up to 80 microns) and the possibility to print in duplicate and mirror mode.

It is ideal for small productions of high quality and precision models, to accelerate time to market and reduce production costs.

Thanks to the Ethernet or Wifi connection it can be integrated into your production system and be part of your insdustry 4.0 smart factory.

In Sharebot’s showroom the printer is always available to carry out quality tests and print tests.

TECHNICAL SPECIFICATIONS

Dimensions: 627 x 485 x 615 mm
Build volume: 300 x 250 x 200 mm
Indipendent dual extruders
Layer height from 0.08 to 0.3 mm
Nozzle: 0.4 mm (0.6 / 0.8 mm)
Extruders up to 320 °C
Heated plate up to 120 °C
Print speed from 10 to 150 mm/s
Connectivity: USB, WiFi, Ethernet

REQUEST OFFER BROCHURE REQUEST MANUALS REQUEST ASSISTANCE
Main featuresTechnical specificationsCompatible materials
PreviousNext

Easy-Detach Magnetic Plate

At the end of printing, the magnetic plate can be easily removed and models detachment is facilitated by the flexibility of the material it is made of.

The high thermal conductivity of the material itself allows the surface to reach up to 120°C in temperature and have the maximum adhesion of the objects during printing.

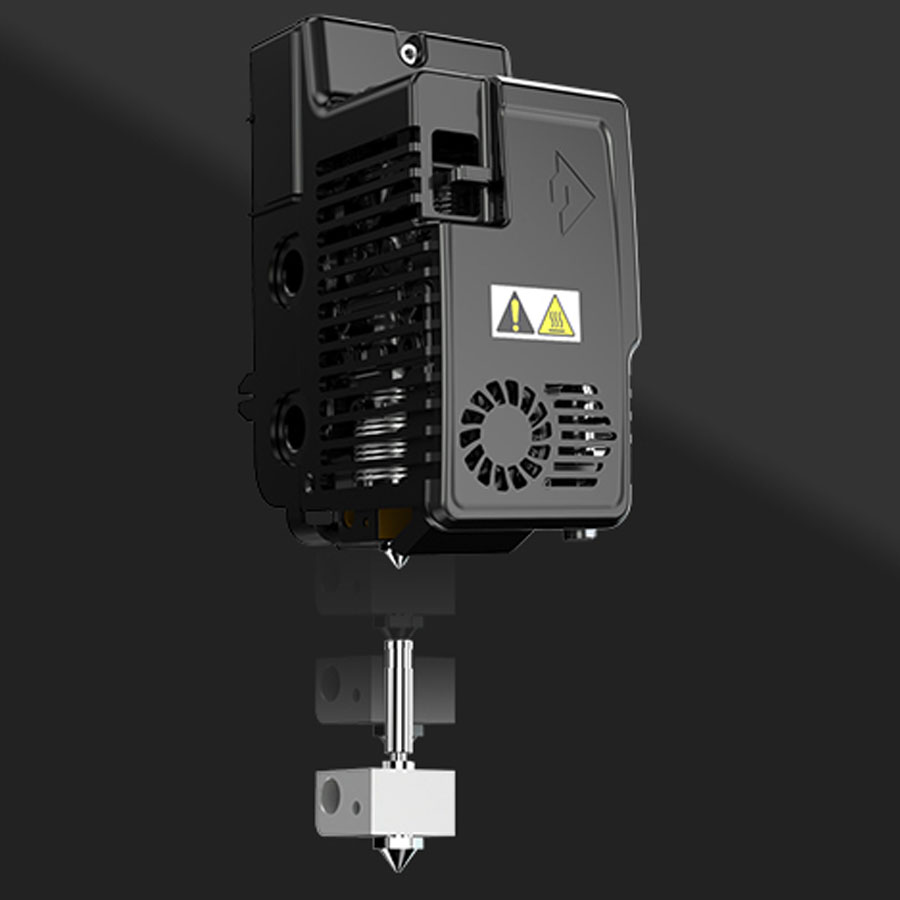

Technical materials for professional use

The extruder heads that reach up to 320°C and the special nozzles (0.4, 0.6 and 0.8 mm) give the possibility to use a wide range of filaments, in particular those with the most advanced mechanical characteristics like PET-Carbon, Nylon-Carbon, Nylon-Glass, ABS, PC e PETG.

EPA filters minimize micro- and nano-particle emissions for a healthier work environment.

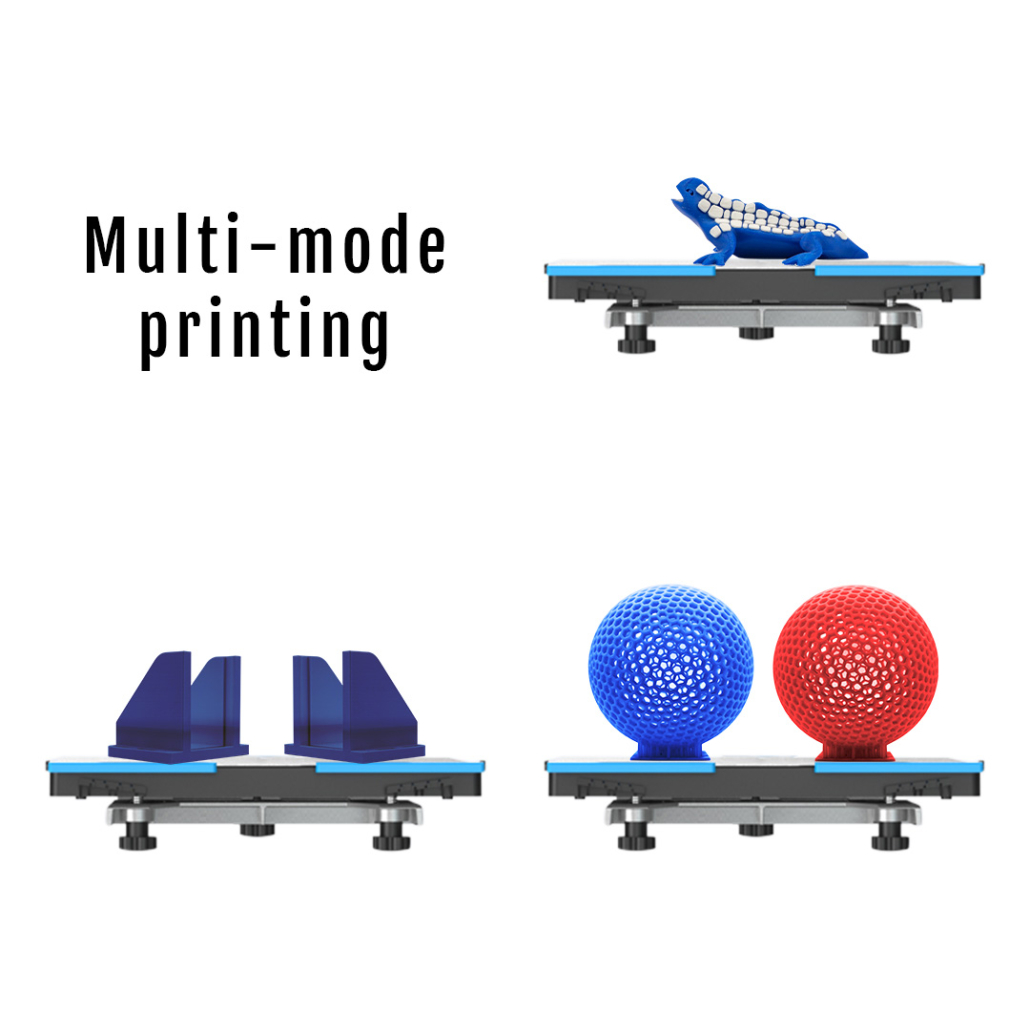

Independent Dual Estruders

A double extruder that allows 3 different modes:

  • two materials, it can be used both to build supports with a different material and objects of two colors
  • two duplicated objects, even in two different colors
  • two mirrored objects

INSTALLATION, ASSISTANCE, TRAINING

Technical support and warranty are always handled by our technicians.

A special training session can be carried out by our engineers who can participate in solving specific problems.

Build volume300 x 250 x 200 mm
Num. of extruders2
Nozzle0,4 – 0,6 – 0,8
Extruder temp. (max)320 °C
Plate temp. (max)120 °C
External dimensions63 x 49 x 62 cm
Weight40 kg
Printing chamberclosed
Air filtersunavailable
Touch screen4″
Internal camerayes
ConnectivityUSB, LAN, WiFi
Industry 4.0yes
Recommended softwareflashprint

All FFF (Fused Filament Fabrication) printers are equipped with filament sensor and automatic plate calibration.

PLAPETABSoluteTPUreNYLON-GLASSNYLON-CARBONPET-HTCF1-RACEPP
CHEMICAL COMPOSITIONpolylactic acidpolyethylene terephthalateacrylonitrile butadiene styrenethermoplastic polyurethanereinforced polyamide with glass fibersreinforced polyamide with carbon fiberspolyethylene terephthalate + 10% carbonpolyphenylene sulfide + 10% carbonpolypropylene
SPOOL FORMAT (gr)750750750500500500500500450
